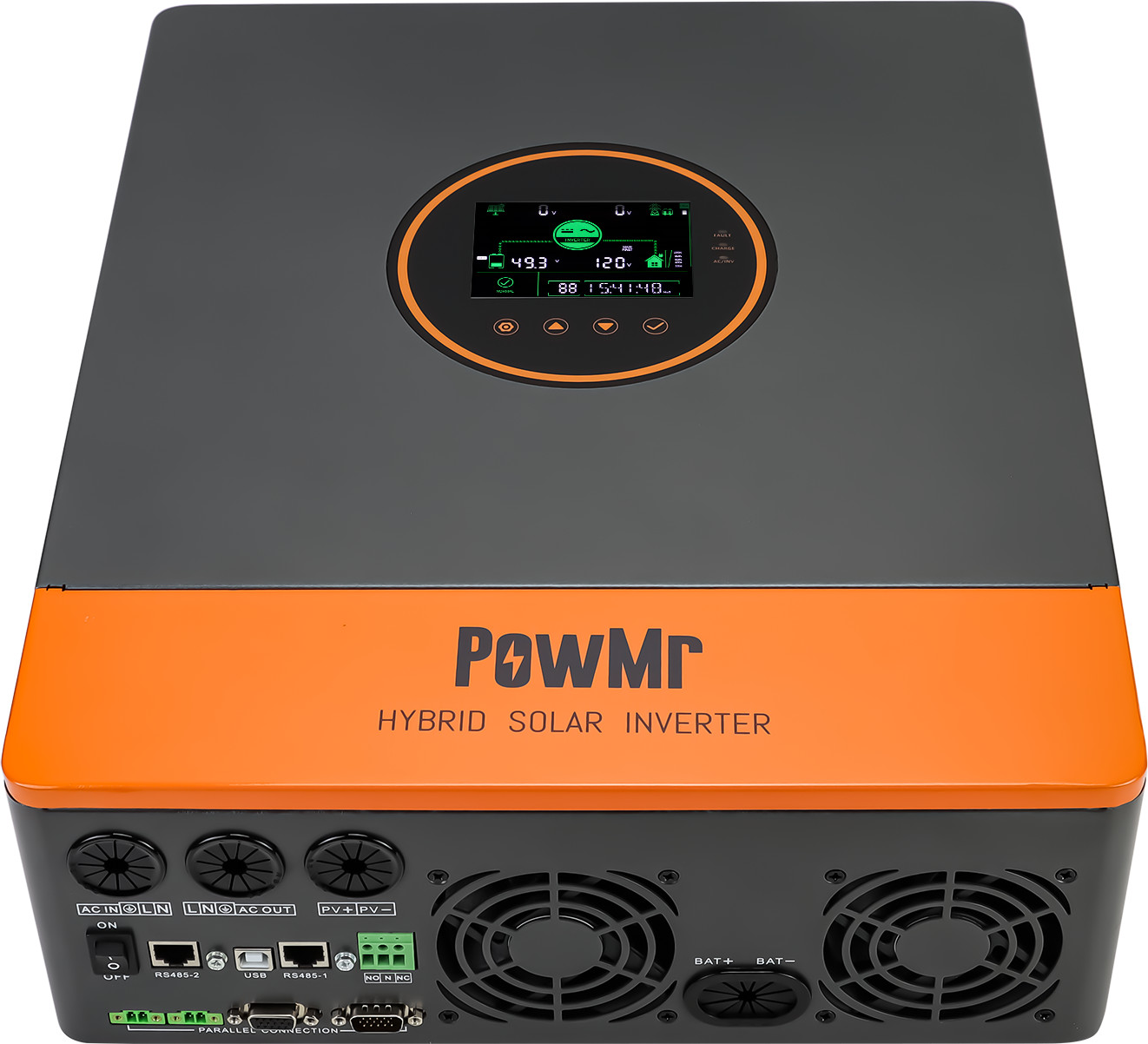

5200W 48V Solar Hybrid Inverter Split Phase 120V 240V 100A MPPT

5200W 48V Solar Hybrid Inverter Split Phase 120V 240V 100A MPPT Controller 500V Note: 1.The Split phase function requires 2 PCs to parallel. Thanks. 2. This model is an upgraded version of the POW-SunSmart SP5K with 200W higher power, the max PV Input power is 6KW, All other parameters are identical. But please note that this machine can not be used in parallel with the POW-SunSmart SP5K. Thank you!   5200W 48V Solar Hybrid Inverter 110/120V Split Phase 100A MPPT Charge Controller   Features

【Parallel Supportable】

Parallel support up to 6 units-31.2kw Max.It's capable of single-phase or split-phase parallel. that means, it can output 110V and 220V at the same time.

【Battery-Free Running】

It can work without battery power input. Keep the load running continuously in the battery-free state and use PV DC current to power the inverter.

【Segmented Charing/Discharging】

3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains.

【Technical Specifications】

Max.PV input power:6000W, PV input voltage range: 120-500V DC, Max.MPPT Charging Current:80A, Rated Output Power:5200W, Max.Peak Power:10400W, Rated Output Voltage:120/240Vac（split phase/single phase)

【Easy&Safe Use】

LCD to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc.

  Specification: Models POW-SunSmart SP5.2K Parallel Mode Permitted parallel number 1~6 AC Mode Rated input voltage 110/120Vac Input voltage range (90Vac~140Vac) ±2% Frequency 50Hz/ 60Hz (Auto detection) Frequency Range 47 ±0.3Hz ~ 55 ±0.3Hz (50Hz);
57 ±0.3Hz ~ 65 ±0.3Hz (60Hz) Overload/short circuit protection Circuit breaker Efficiency >95% Conversion time (bypass and inverter) 10ms (typical) AC reverse protection Available Maximum bypass overload current 63A Inverter Mode   Output voltage waveform Pure sine wave Rated output power 5200VA Rated output power 5200W Power factor 1 Rated output voltage 120Vac Rated output voltage
(100/105/110Vac Settable) Output voltage error ±5% Output frequency range 50Hz ± 0.3Hz;
60Hz ± 0.3Hz Maximum Efficiency >92% Overload protection (102% < load <110%) ±10%: report error and turn off the output after 5 minutes;
(110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds;
(Load >125% ±10%): report error and turn off the output after 5 seconds; Peak power 10400VA Loaded motor capability 4HP Rated battery input voltage 48V (Minimum starting voltage 44V) Battery voltage range Undervoltage alarm/ shutdown voltage/ overvoltage alarm/overvoltage recovery... settable on LCD screen Power saving mode self-consumption Load ≤ 50W AC Output (Grid) Rated Output Power 5200W Max. apparent power 5200VA Max. output current 41.7A THDI <3% Rated voltage 120Vac Frequency 50Hz/60Hz AC Charging Battery type Lead acid or lithium battery Maximum charge current(can be set) 0-40A Charge current error ± 3Adc Charge voltage range 40–58Vdc Short circuit protection Circuit breaker and blown fuse Circuit breaker specifications 63A Overcharge protection Alarm and turn off charging after 1 minute PV Charging Maximum PV open circuit voltage 500Vdc PV operating voltage range 120-500Vdc MPPT voltage range 120-450Vdc Battery voltage range 40-60Vdc Maximum PV input power 6000W Maximum PV input current 22A PV charging current range (can be set) 100A Charging short circuit protection Blown fuse Wiring protection Reverse polarity protection Hybrid charging Max charger current specifications (AC charger + PV charger) Max charger current(can be set) 100A Certified specifications Certification CE(IEC62109-1) EMC certification level EN61000 Operating temperature range -10°C ~ 55°C Storage temperature range -25°C ~ 60°C Humidity range 5% to 95% (Conformal coating protection) Noise ≤60dB Heat dissipation Forced air cooling, variable speed of fan Communication interface USB/RS485(WiFi/GPRS)/Dry contact control Dimension (L*W*D) 446.9mm*350mm*133mm Weight 14kg     Keywords： ⚫ Single phase/split phase/three phase ⚫ 120/208/240V AC output ⚫ Off-grid & on-grid ⚫ 1 MPP Tracker ⚫ Parallel operation     Characteristic: ⚫ Off-grid & on-grid pure sine wave inverter. ⚫ The Maximum number of parallel connections is 6. ⚫ Higher output power up to 5200W. ⚫ 120/208/240Vac AC output. ⚫ Supports single-phase/split-phase/three-phase devices. ⚫ Fast switching time of 10ms. ⚫ Compatible with 48V lithium-ion and lead-acid batteries, support user-define. ⚫ Max. PV charging current up to 100A. ⚫ Max. AC is charging current up to 40A. ⚫ Max. hybrid charging current up to 100A. ⚫ 90~140Vac AC input voltage range. ⚫ 120~500Vdc wide voltage range for PV access. ⚫ Higher input DC current up to 22A in a single circuit. ⚫ Energy saving mode function to reduce no-load energy losses. ⚫ Configure multiple communication interfaces (RS485/USB/Dry contact). ⚫ Durable finish with high anti-corrosion. ⚫ Effective forced air cooling to ensure that the equipment runs stably.     5.5KW Solar Input Power - 1 built-in MPP Tracker for Max. DC coupled power of 6KW - MPPT with 99.9% efficiency - 125~500Vdc wide voltage range for PV access - 22A Max. MPPT current   5KW Output Power Off-grid - Continuous AC power of 5.2KW - 120/208/240Vac pure sine wave AC output - Supports single-phase/split-phase/three-phase equipment - Energy saving mode function to reduce no-load energy losses   48V Battery - Compatible with 48V lithium-ion and lead-acid battery - Support user-define - Maximum 100A charging current continuous charging   Multiple communication interfaces - RS485/CAN/USB/Dry contact - Support for WIFI or GPRS peripheral communication components   Excellent fuselage design - Durable finish with high anti-corrosion - Effective forced air cooling to ensure that the equipment runs stably   5KW Output Power On-grid - 41.7A Max. output current - High output power up to 5200VA/5200W - Output power factor of 1.0                     PowMr EverywhereDelivery detailsTerms of salesPaymentContact us PowMr Everywhere PowMr is a global solar energy innovation application company. In the past ten years, we have provided related products and services to more than 150 countries around the world, and are committed to promoting solar energy products to more application fields and scenarios. We advocate new energy life, improve new energy ecological technology, protect the natural environment, and realize the common progress of man and nature.       Why PowMr?
